CNC Enclosure Plan, Aluminum Extrusion Cabinet (PDF Download), Shapeoko 5.1 Pro

Upgrade your CNC workspace with this detailed digital plan for building a rigid, clear-panel CNC enclosure designed around the Shapeoko 5.1 Pro 2x2.

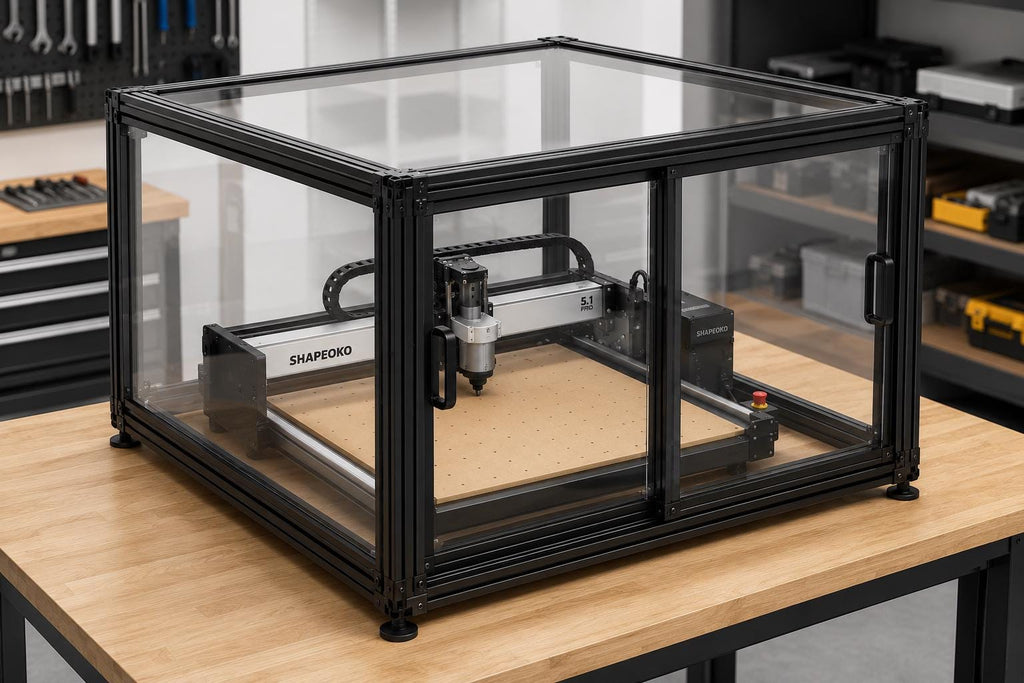

This enclosure is a four-sided, open-bottom cover that sits around your machine on an existing bench. It uses a black 2040 aluminum extrusion frame, surface-mounted clear acrylic panels, bypass sliding doors on both the front and back, and a removable top panel for tall or full-width material access.

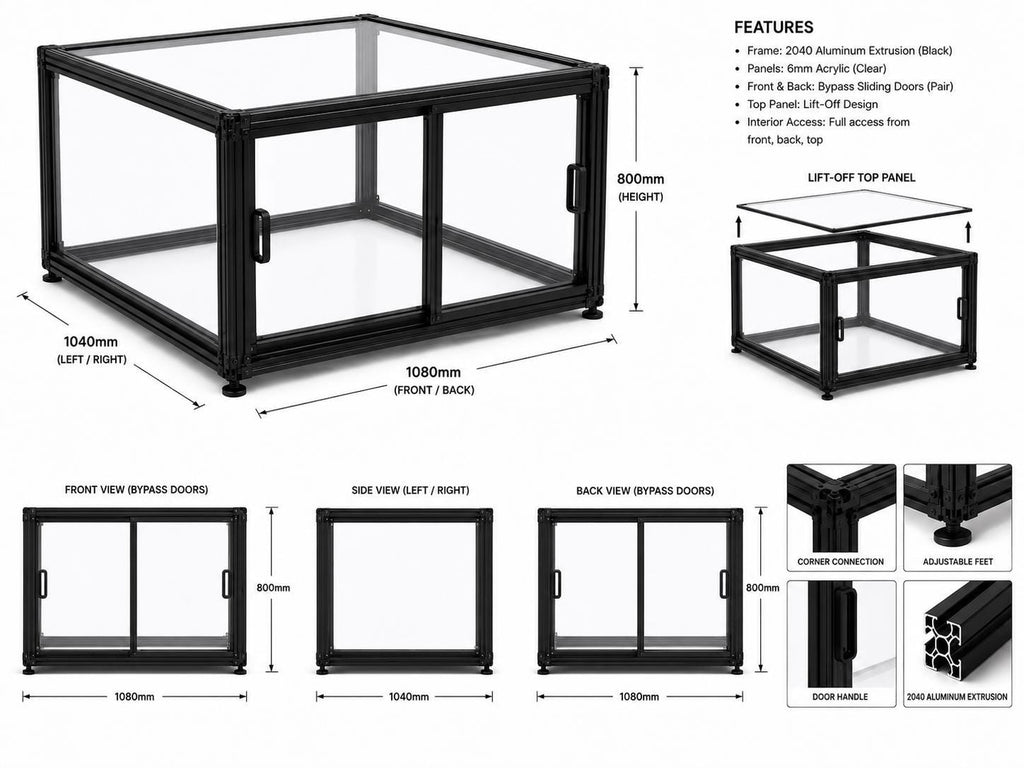

The finished enclosure measures approximately:

1080 mm W × 1040 mm D × 800 mm H
42.52 in W × 40.94 in D × 31.50 in H

The plan is designed around precut aluminum extrusion to make the build easier: 4 vertical posts at 800 mm and 8 rails at 1000 mm, all using the same 2040 profile. No extrusion cutting is required if you order the bars precut.

What’s Included

This is a digital PDF woodworking / shop fabrication plan. No physical product will be shipped.

Your download includes:

11-page CNC enclosure plan PDF
Finished dimensions in metric and imperial
Overview and clearance specifications
Tools and shop supplies list
Bill of materials summary
Aluminum extrusion cut list
Acrylic panel cut list
Hardware and fastener list
Step-by-step assembly sequence
Wiring, dust collection, lighting, ventilation, and accessory guidance

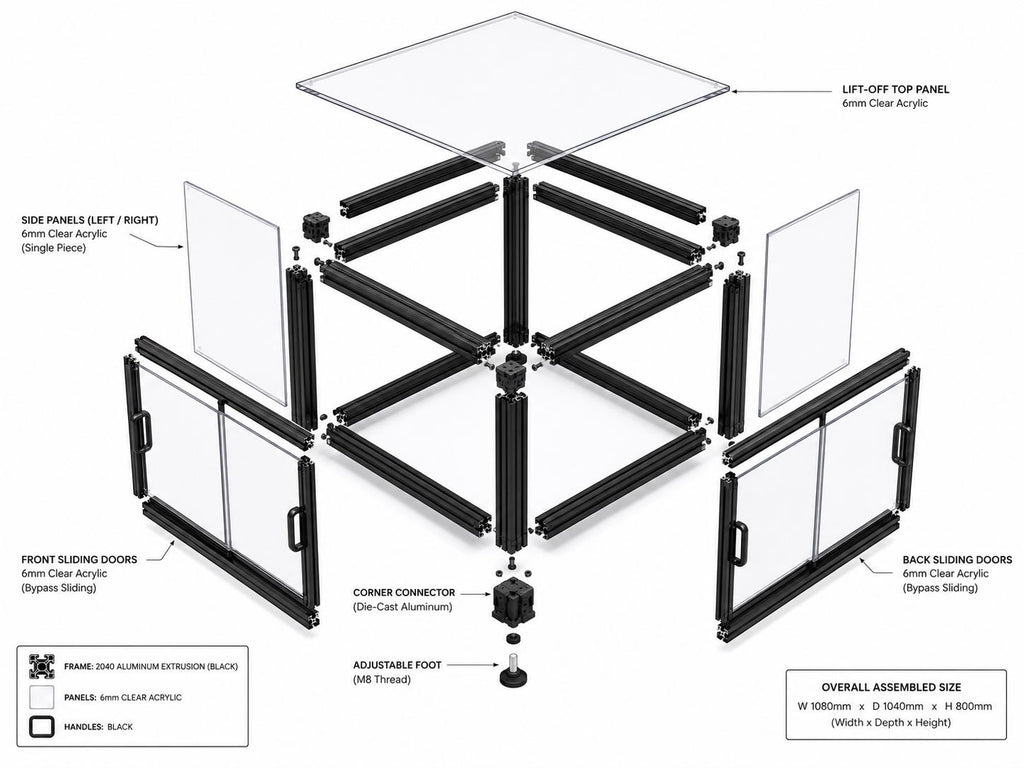

Exploded assembly view
Sliding door layout details
Safety and liability notes
Key Features

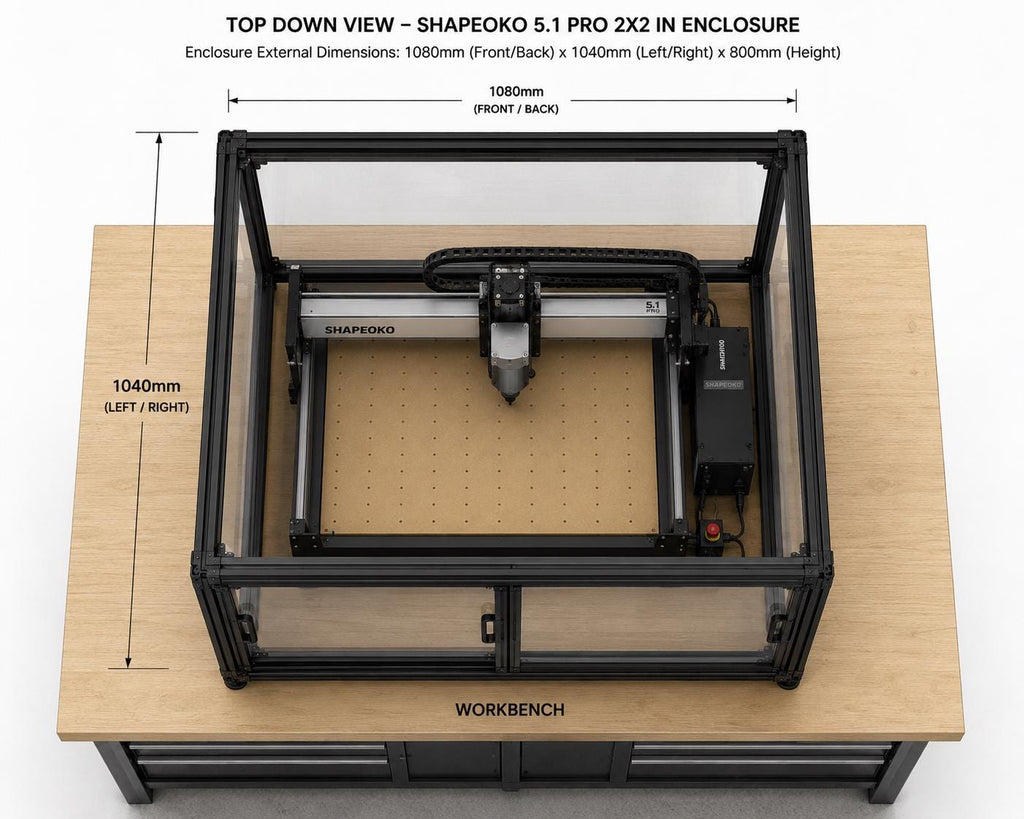

Designed for Shapeoko 5.1 Pro 2x2
Finished size: 1080 × 1040 × 800 mm
Interior clear cavity: 1000 × 1000 × 760 mm
Built from 2040 T-slot aluminum extrusion
Uses 6 mm / 1⁄4 in clear cast acrylic
Front and back bypass sliding doors
Removable lift-off top panel
Open-bottom design fits around machine on existing bench
Optional LED lighting, exhaust fan, dust port, cable grommets, and magnetic interlock
Precut extrusion-friendly design
Clean shop look with improved chip and dust containment
Skill Level

Intermediate DIY / CNC Shop Build

This is a bolt-together fabrication plan using aluminum extrusion, acrylic panels, sliding door track, T-nuts, brackets, and basic shop tools. Acrylic trimming, drilling, and careful squaring are required.

Important Notes

Please verify your own CNC machine dimensions before ordering materials. Accessories such as a dust boot, drag chain, BitSetter, spindle, router, cables, or aftermarket components may affect clearance.

This enclosure helps contain dust and chips, but it does not replace proper dust collection, machine guarding, ventilation, or safe CNC operating practices.

Suggested Materials
2040 aluminum extrusion
6 mm clear acrylic panels
20-series sliding door track
Inside corner brackets
M5 T-nuts and button-head screws
EPDM gasket tape
Door handles
Dust port
Cable grommets
Optional LED strip
Optional ventilation fan
Optional magnetic door interlock
Digital Download Notice

This is a digital PDF plan only. No printed plan, materials, hardware, CNC machine, enclosure, or physical parts are included.

After purchase, Etsy will provide access to your digital download.

License

You may build this enclosure for personal use, modify the design for your own shop, and build finished enclosures from the plan.

You may not resell, redistribute, share, upload, sublicense, or include this PDF or its files in another product, bundle, or plan library.
